Briggs And Stratton Carb Adjustment Screws

Hey there, fellow lawnmower warriors and tiller titans! Ever stared at your trusty Briggs and Stratton engine, feeling like it's speaking a foreign language? You know, that little cough, sputter, wheeze that tells you something's not quite right? Well, buckle up, buttercup, because we're about to dive into the magical, sometimes maddening, world of Briggs and Stratton carburetor adjustment screws. Don't worry, it's not rocket science – though sometimes it feels like it, right?

Think of your carburetor as the engine's tiny, but mighty, chef. It's the one responsible for mixing the perfect blend of fuel and air so your engine can sing a sweet song of power. And those adjustment screws? They're like the chef's precision seasoning controls. A little tweak here, a little turn there, and suddenly, your machine is purring like a kitten that just had a massive bowl of cream.

Now, before we get our hands greasy (and trust me, they will get greasy), let's acknowledge the elephant in the shed: carburetors can be intimidating. They've got little fiddly bits, springs that seem determined to launch themselves into orbit, and of course, those mysterious screws. But here's the secret sauce: most of the time, a simple carb adjustment is all your little Briggs and Stratton needs to get back to its happy place.

So, why would you even need to adjust those screws? Well, life happens. Maybe your mower sat in the garage for a little too long, gathering dust bunnies and existential dread. Or perhaps the humidity decided to throw a party and messed with the air density. Whatever the reason, when your engine starts acting up – running rough, stalling, or just not having that get-up-and-go it used to – the carburetor is often the culprit. And those adjustment screws are your handy dandy fix-it tools.

The Stars of the Show: Your Adjustment Screws

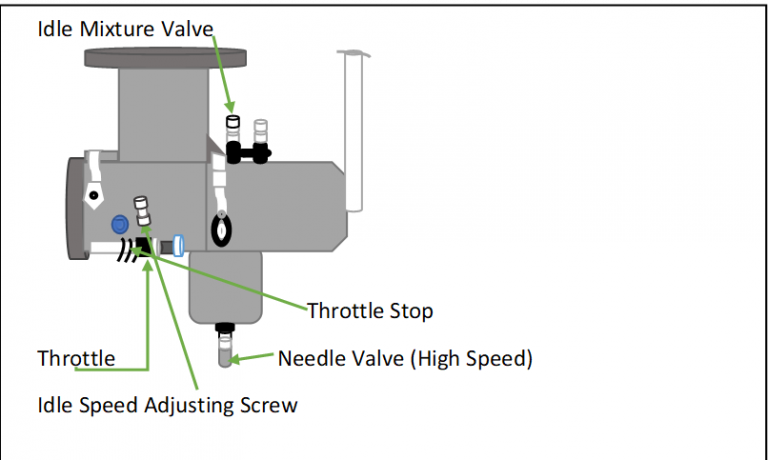

Alright, let's meet the main players. On most Briggs and Stratton carburetors, you're going to find two main adjustment screws. Sometimes there's a third, but let's start with the dynamic duo. These little guys usually control the fuel-to-air mixture at different engine speeds.

First up, we have the idle mixture screw. This little chap usually sits on the side or bottom of the carburetor, and it's often a bit smaller and harder to get to. Its job is to fine-tune the fuel mixture when your engine is just chilling, idling along. Think of it as setting the perfect cozy temperature for your engine when it's just lounging.

Then, there's the high-speed mixture screw. This one is typically a bit larger and more accessible. As its name suggests, it handles the fuel mixture when your engine is working hard, like when you're tackling that overgrown jungle you affectionately call your backyard. It’s like the thermostat for when your engine is running at full blast, trying to conquer the world (or at least your lawn).

Now, here's a little heads-up: some newer Briggs and Stratton engines might have these screws sealed or have different types. If you can't find them, or they look like they've been glued in place by a determined squirrel, don't panic! You might have an emissions-controlled carburetor. In those cases, a manual adjustment might not be possible or recommended. But for the majority of classic Briggs and Stratton beauties, these screws are your ticket to engine nirvana.

The 'Before' Picture: What to Look For

Before you even think about touching those screws, it's crucial to understand what you're trying to fix. Is your engine:

• Running rough or sputtering at idle? This is a classic sign that the idle mixture might be off. It's like the engine is clearing its throat, trying to get comfortable.
• Hesitating or bogging down when you open the throttle? This could point to an issue with the high-speed mixture. The engine isn't getting enough juice to keep up with your enthusiasm.
• Stalling when you go from idle to wide open, or vice versa? This is another clue that the transition between idle and high speed isn't smooth, often related to both screws.
• Black smoke coming from the exhaust? Uh oh! That's a sign of a rich mixture (too much fuel, not enough air). Your engine is practically drowning in gasoline.
• Running hot or making a "pinging" sound? That's a sign of a lean mixture (too much air, not enough fuel). Your engine is getting a little too much of a workout and might be about to complain loudly.

Diagnosing the problem first is like knowing which seasoning to add before you start cooking. It makes the whole process a lot less guesswork and a lot more successful. Think of yourself as a tiny engine detective, gathering clues!

The 'How-To' Guide: Getting Your Hands Dirty (Safely!)

Okay, you've identified the problem, and you're ready to become a carburetor whisperer. Here's the game plan. Remember, this is a general guide, and your specific Briggs and Stratton model might have slight variations. Always check your engine's manual if you have it – it's like the secret recipe book!

Step 1: Safety First, Always!

This is non-negotiable, folks. Fire is not your friend when you're working with gasoline. Make sure you're working in a well-ventilated area, away from any open flames, sparks, or things that go "boom." Wear safety glasses – you don't want fuel or debris in your eyes. And maybe have a fire extinguisher handy, just in case. Better safe than sorry!

Step 2: Gather Your Tools

You won't need a whole toolbox for this. Typically, you'll need:

• A screwdriver: Usually a flathead, but the size can vary.
• A tachometer (optional but recommended): This fancy gadget tells you your engine's RPMs. It's super helpful for getting that idle speed just right.
• Gloves: Because, you know, grease.
• A rag: For wiping up inevitable spills.

Step 3: Locate and Prepare the Screws

Pop the hood (or the engine cover, if you prefer) and find those adjustment screws. As we mentioned, the idle mixture screw is usually smaller and might be tucked away a bit. The high-speed screw is generally more prominent. Sometimes, they have little springs around them. Don't lose those springs!

Before you start turning, it's a good practice to gently turn both screws all the way in (clockwise) until they just seat. Be very gentle. You're not trying to torque them down; you're just finding the starting point. Then, back them out (counter-clockwise) the same number of turns. A common starting point is 1 ½ turns out for both screws, but again, check your manual. This gives you a baseline.

Step 4: Adjusting the Idle Mixture Screw (The Lounger)

This is where the magic happens for smooth idling. Start your engine and let it warm up for a few minutes. You want it at operating temperature. Now, listen to that idle. Is it rough? Stuttering? Or maybe it's revving too high and sounds like it's trying to escape?

With the engine running, slowly turn the idle mixture screw clockwise (leaner) or counter-clockwise (richer) in very small increments – like, a quarter or half a turn at a time. Listen carefully to the engine's sound. You're listening for the highest, smoothest idle speed. As you turn the screw, you'll likely notice the engine speed change.

The goal is to find the sweet spot where the engine idles as smoothly and as fast as possible without making any weird noises. Once you find that point, you might want to back the screw out just a tiny bit (maybe an eighth of a turn) to prevent stalling if it's a bit too lean. If it's still stumbling, you might need to go a tad richer.

If you have a tachometer, you can use it to set the recommended idle speed (usually around 1200-1800 RPM, but again, check your manual). This takes a lot of the guesswork out and ensures you're in the manufacturer's sweet spot. It's like having a built-in cheat code!

Step 5: Adjusting the High-Speed Mixture Screw (The Worker Bee)

This one is usually adjusted under load, meaning you'll need the engine to be revving. With the engine running, gradually open the throttle. If your engine hesitates, sputters, or bogs down, it's likely running too lean. You'll need to make the mixture richer by turning the screw counter-clockwise.

If your engine is smoking black, running rough at high speeds, or feels like it's "choking," it's likely running too rich. You'll need to make the mixture leaner by turning the screw clockwise.

Here's the tricky part: you often adjust the high-speed screw by listening to the engine's sound under load. Open the throttle wide and listen. If it hesitates, turn the screw out (richer) a tiny bit. If it sounds "bogged down" or is blowing black smoke, turn it in (leaner) a tiny bit. You're looking for a smooth, powerful acceleration without hesitation or stumbling.

Some people like to adjust the high-speed screw by turning it in until the engine starts to lean out (making a pinging sound or losing power), and then backing it out about a quarter or half a turn. This is a good starting point, but you might need to fine-tune it based on how the engine performs in its actual work environment (i.e., cutting grass!).

Pro Tip: If you have a model with a governor, the high-speed screw can sometimes interact with the governor. Be mindful of that! The governor's job is to maintain a consistent engine speed, so you want to set the fuel mixture so the engine can reach and maintain its governed speed without struggling.

Step 6: Testing and Fine-Tuning

Once you've made your adjustments, it's time for the real test. Start the engine, let it warm up, and then try operating it as you normally would. Mow the lawn, till the garden, whatever makes your heart sing (or your engine roar). Does it run smoothly? Does it have plenty of power? Does it still sound like it's clearing its throat?

If not, don't despair! Go back, listen again, and make small, incremental adjustments. It’s often a process of trial and error. Think of it as a dance between you and the engine. You take a step, it responds, and you adjust your next move.

Remember that the ideal adjustment can vary slightly depending on altitude, temperature, and humidity. What works perfectly on a cool, crisp morning might need a tiny tweak on a hot, humid afternoon.

When to Call in the Pros (or Just Get a New Carb)

Now, even with the best intentions and the steadiest hands, sometimes those little adjustment screws just won't cooperate. If you've tried everything and your engine is still acting like a grumpy teenager, it might be time to consider a few things:

• Dirty Carburetor: The adjustment screws are just one part of the puzzle. If the internal passages of the carburetor are clogged with gunk and varnish, no amount of screw-turning will fix it. You might need to clean the carburetor. This can involve taking it apart and using a carb cleaner.
• Fuel Issues: Is your fuel fresh? Old, stale gas can cause all sorts of problems. Make sure you're using good quality fuel.
• Spark Plug or Ignition Problems: Sometimes, the issue isn't the carburetor at all! A fouled spark plug or a weak spark can mimic carburetor problems.
• Worn-Out Carburetor: If your carburetor is old and has seen better days, it might simply be time for a replacement. They aren't terribly expensive, and a new carb can breathe new life into an old engine. Think of it as giving your engine a fresh start!

Don't beat yourself up if you can't fix it. We all have our limits, and sometimes, calling a qualified small engine mechanic is the smartest move. They've got the experience and the tools to get your machine purring again.

The Uplifting Conclusion

So there you have it! A little peek into the world of Briggs and Stratton carburetor adjustment screws. It might seem a bit daunting at first, but with a little patience, a steady hand, and a willingness to listen to your engine's subtle whispers, you can often bring your hardworking machine back to its full glory.

Remember, every time you successfully tune up your engine, you're not just fixing a piece of equipment; you're building a connection. You're learning to understand the language of your tools, and that's a skill that's incredibly rewarding. So, the next time your Briggs and Stratton gives you that tell-tale cough, don't sigh in frustration. See it as an opportunity to become a little more skilled, a little more confident, and a little closer to mastering the symphony of your outdoor power equipment. Go forth, adjust those screws, and let the sweet sound of a well-running engine fill your world with the satisfaction of a job well done. Happy tinkering, and may your lawns be ever green!
